Primary™
Floor-mount flushometer bowl

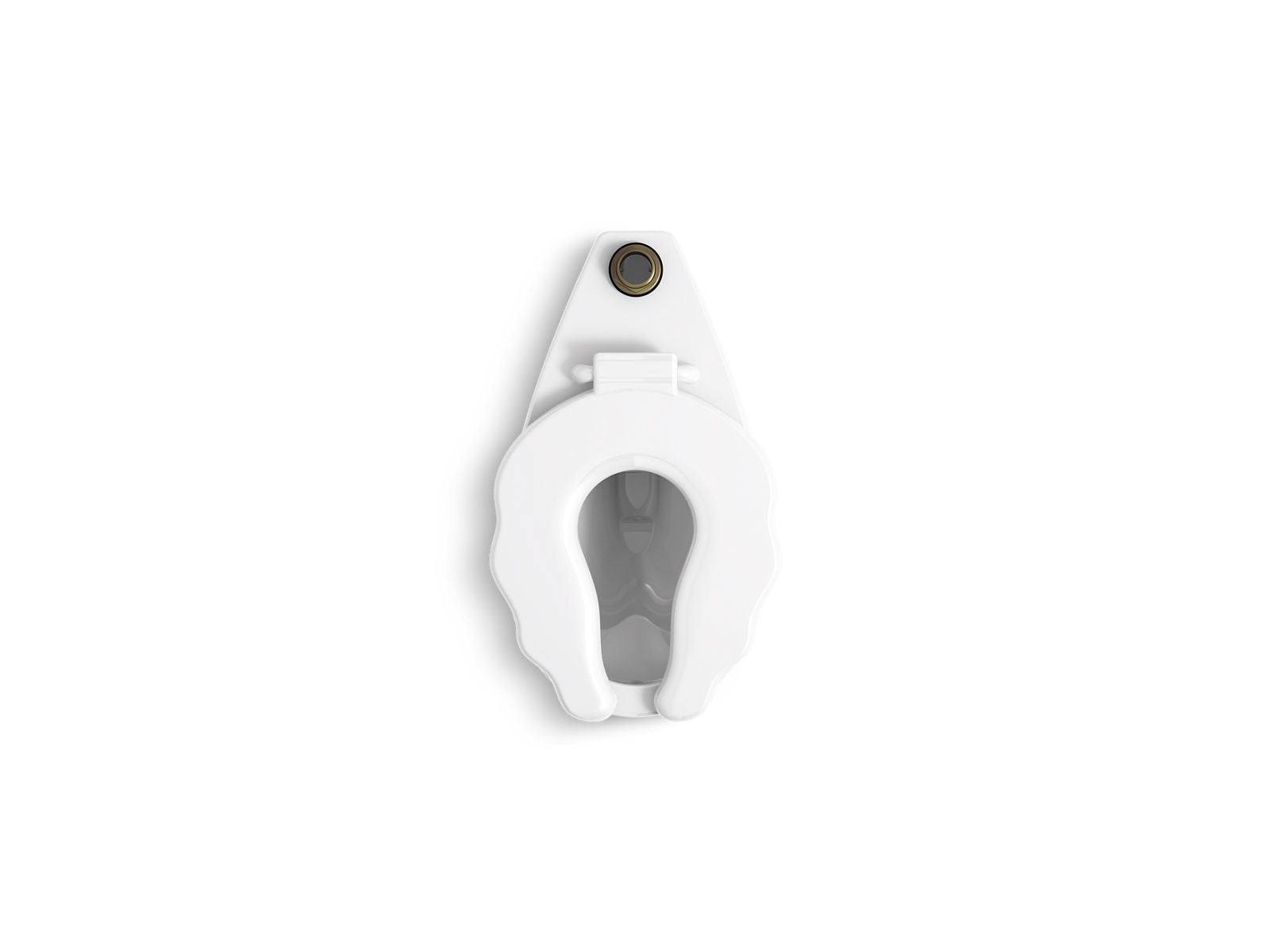

K-96064-0Just the right size. The KOHLER® Primary toilet offers a low bowl height to accommodate users in kindergartens, grade schools, daycare centers, and children's wards. Precision-engineered to meet the challenges of demanding conditions, this model includes a custom toilet seat equipped with a smaller opening and scalloped side handholds to make it more comfortable for children.
2D Plan
2D Front
2D Side
3D File
BIM
Cutout Template
Guides
- Elongated, 10-1/2" height bowl
- 1-1/2" (38 mm) top spud
- 10" x 7" (254 mm x 178 mm) water surface
- 1-7/8" (48 mm) fully glazed trapway
- 10" or 12" (254 or 305 mm) rough-in
Overall Height
11-3/4"
Overall Width
13-1/8"
Overall Length
24-7/16"
Height to Rim
10-1/2"
Water Surface Length
10"
Water Surface Width
Material
Vitreous China
Bowl Shape
Elongated
Bowl Height
Standard Height (less than 17")
Trapway Type
Exposed
