Highcliff™ Ultra
Floor-mount rear spud flushometer bowl
K-96058-0The Highcliff Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design. Measuring 16-7/8" to the top of the rim, the Highcliff Ultra meets both ADA and CSA height requirements. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. The Highcliff rear spud is listed from 1.28 to 1.6 gpf and performs well at either flush volume. It has been proven with all manner of valves (diaphragm, piston, manual, and electronic) from a variety of manufacturers.
2D Plan
2D Front
2D Side
3D File
BIM
Cutout Template
Guides
- Elongated bowl offers added room and comfort
- 1-1/2" (38 mm) rear spud
- 1.28 gpf - 1.6 gpf (4.8 - 6.0 lpf) flush range
- 10" x 7" (254 mm x 178 mm) water surface
- Also available with antimicrobial finish K-96058-SS
More from this Collection

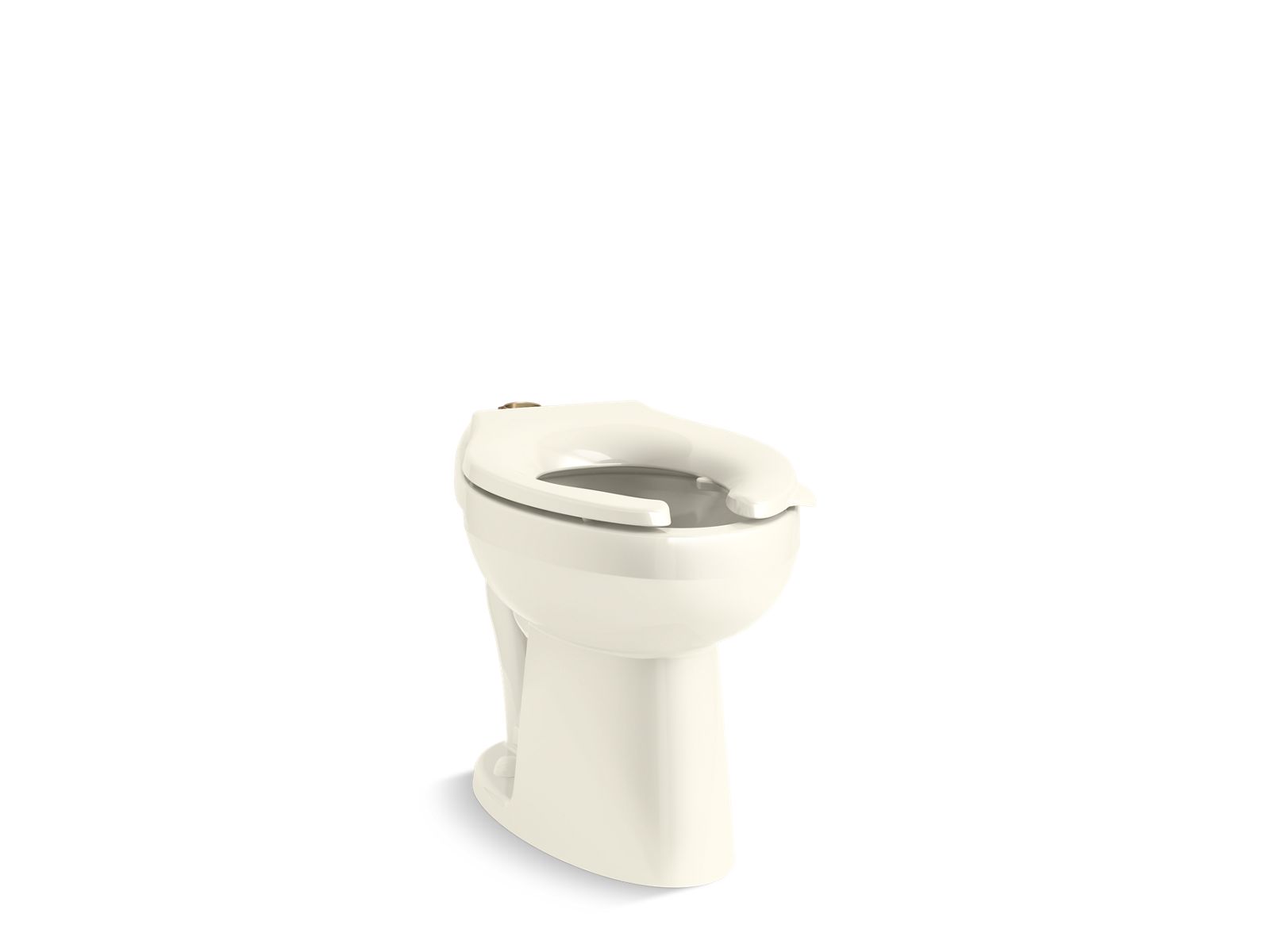

Highcliff™ Ultra
Floor-mount top spud flushometer bowl
Highcliff™ Ultra
Floor-mount top spud flushometer bowl with bedpan lugs
Highcliff™ Ultra
Floor-mount top spud flushometer bowl
Highcliff™ Ultra
Floor-mount top spud antimicrobial flushometer bowl with bedpan lugs
Similar Products
Wellcomme™ Ultra
Rear spud antimicrobial flushometer bowl
Highline™ Classic
Two-piece elongated toilet, 1.0 gpf

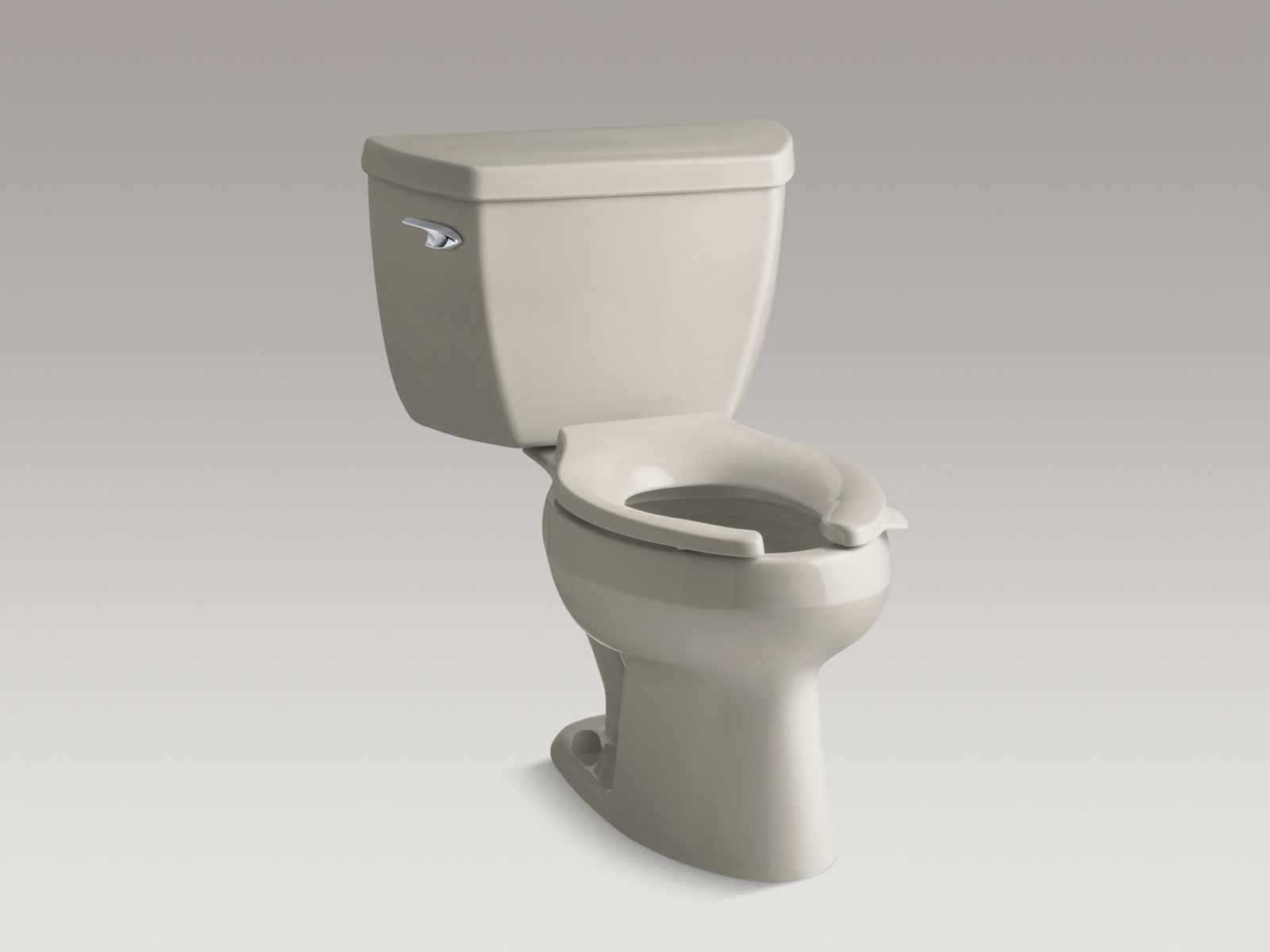

Wellworth™ Classic
Two-piece elongated toilet, 1.0 gpf

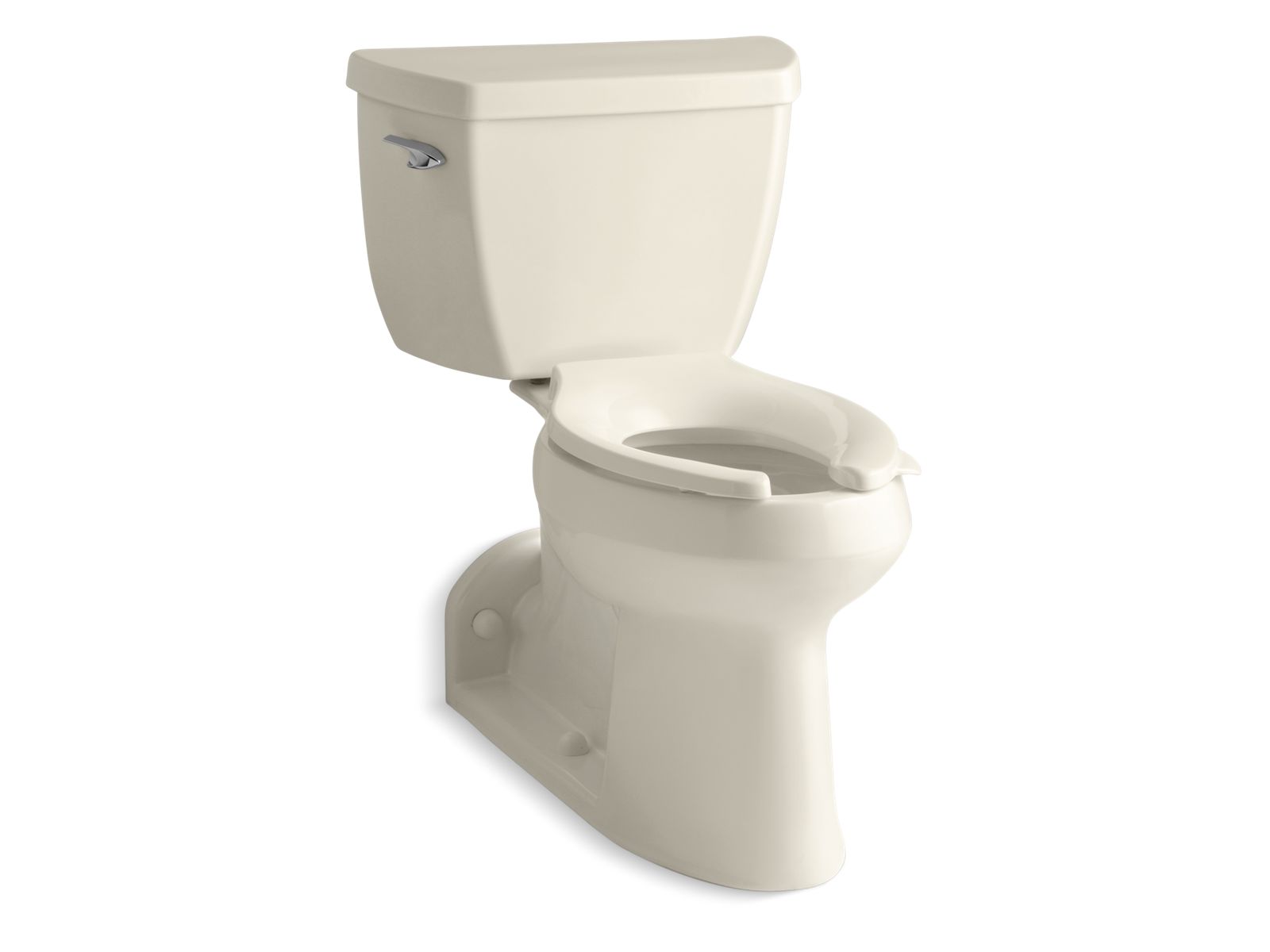

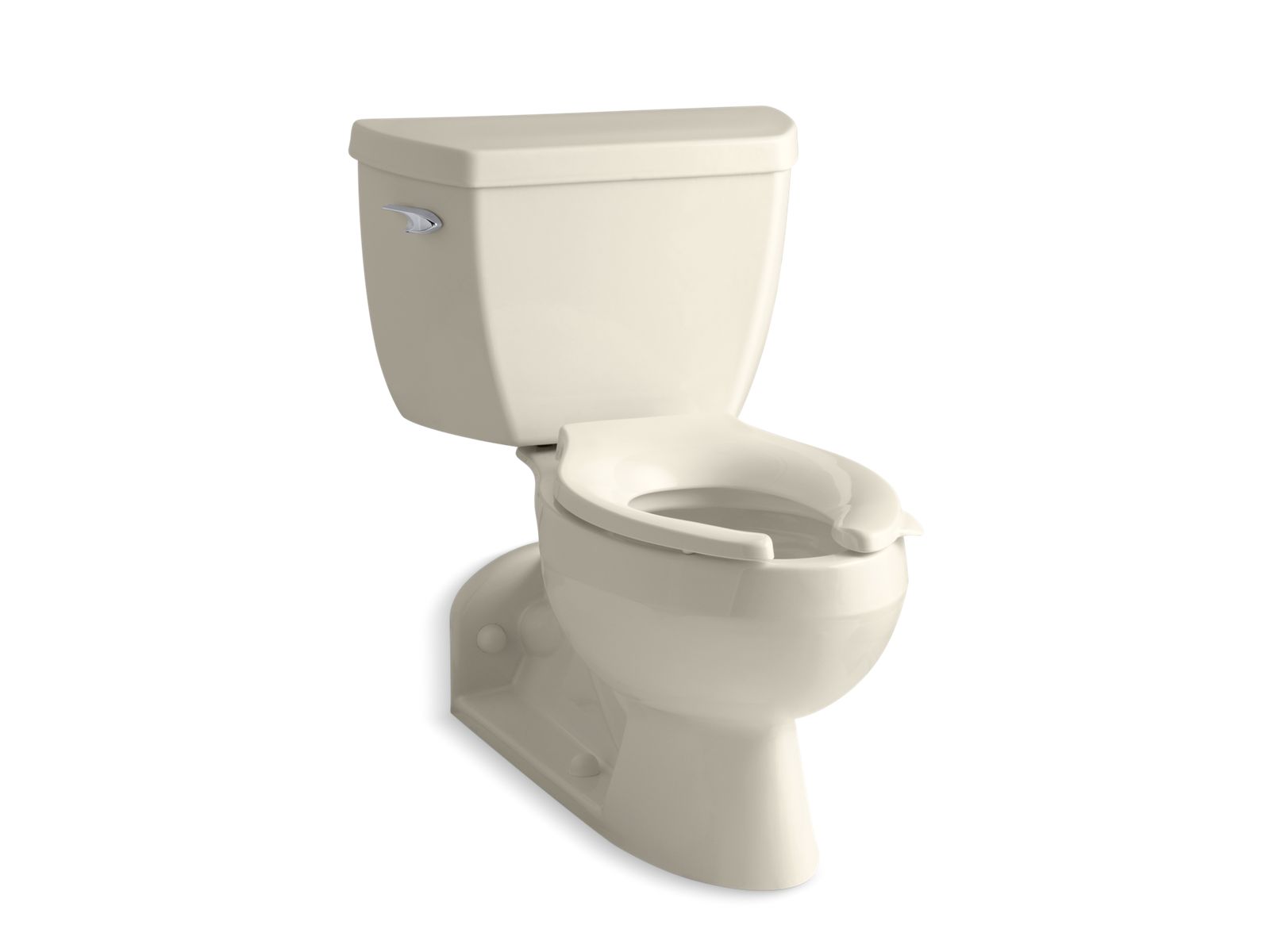

Barrington™
